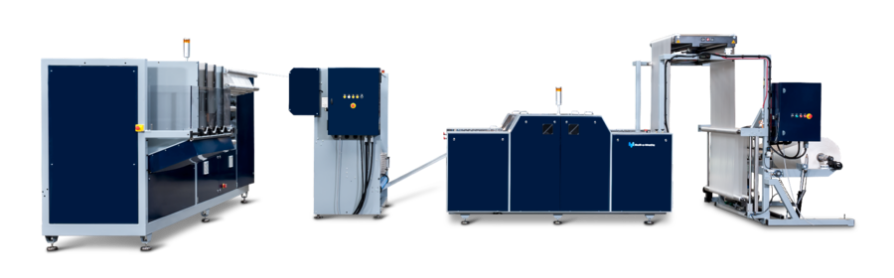

Omega F Air Cushions

The Omega F is a high-speed production line for air cushions on roll, developed for protective packaging applications. The air cushions consist of multiple smaller air chambers, providing a flexible packaging material for protecting products during packing and transportation.

The line combines high production capacity with reliable sealing quality to help ensure that the individual air chambers retain air during use. Using continuous motion technology, the Omega F seals and perforates the film while it runs continuously through the line. It can produce air cushions in up to 2 lanes at film speeds up to 150 m/min.

The finished, uninflated air cushions are wound into rolls for efficient handling and distribution. At the point of use, the cushions are inflated and can be detached from the roll as needed for protective packaging.

The Omega F can process different film types, including bio-based and recycled films, providing flexibility to meet different packaging and material requirements.

Do you need an expert?

Find your Roll-o-Matic representative in your country

See video

Performance

Max. speed 150 m/min (492 ft/min)

Up to 1000 cushions/min/lane

Up to 2 lanes

Technical Data

Capacity example 1Capacity example 2
Product6" cushions8" cushions
Cushions/min/lane1000 750
Number of Lanes22
Total cushions/min2000 1500
Contact us for all product solutions

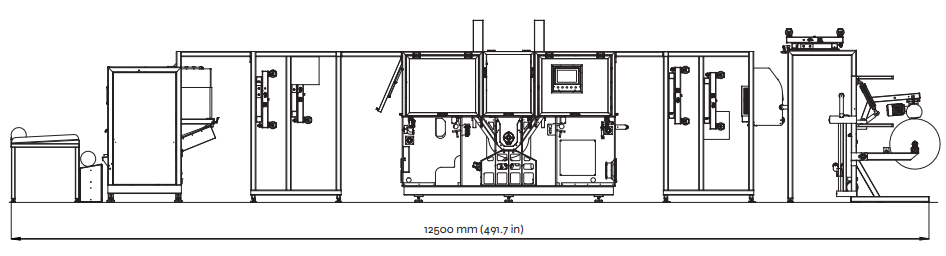

Technical Drawing
Product sheet – Download here Download File

Watch the video about Omega F Air Cushions

See all videos
