IHW Interleaved High-speed Winder

The IHW is a high-speed winder for interleaved and perforated winding of bags in 1 or 2 lanes. The interleaved bags are separated from each other after perforation and then wound – each bag overlaps the previous one.

The IHW winder can be configured with modules of the Delta series, for production of bottom sealed, star sealed, wave top, T-shirt and star sealed T-shirt bags in 2 lanes or draw tape bags in 1 lane.

The IHW is equipped with 20 mm diameter chucks, which assures that the finished rolls are firm and tight. It is possible to make up to 22 roll changes per minute without tape. For production with paper tape, the IHW can be equipped with the TD 200/20 tape equipment, and make up to 20 roll changes per minute.

Do you need an expert?

Find your Roll-o-Matic representative in your country

See video

Performance

Max. film speed: 160 m/min (525 ft/min)

Max. roll change/lane: 22/min

Technical Data

IHW
Max. winding width 1 or 2 x 330 mm (13 in)
Max. roll diameter200 mm (7.9 in)
Max. film speed160 m/min (525 ft/min)
Max. roll changes/lane22/min
Max. roll changes/lane with tape20/min
Contact us for all product solutions

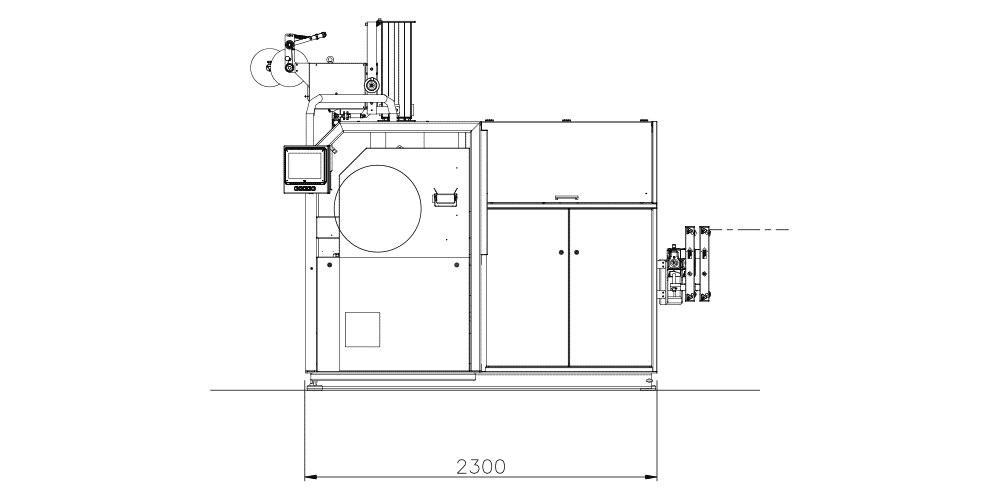

Technical Drawing
Product sheet – Download here Download File

Watch the video about IHW Interleaved High-speed Winder
