FW Flat Sheet Winder

Roll-o-Matic’s FW winder has been developed for winding the web into flat sheets. The multiple folded film is used in applications such as dust sheets, table cloths and garden covers – supplied in flat packs. The FW is available for both in-line and out-of-line operation. Web cut is done in stop position, which means that you will obtain a clean cut and the web will be cut at the right-angle to the film edge, even with heavy gauge films.

Performance

Max. film speed 120 m/min (395 ft/min)

Max. cycles 12/min

Technical Data

FW 400
Min. width of finished pack200 mm (7.9 in)
Max. width of finished pack400 mm (15.7 in)
Min. length of finished pack160 mm (6.3 in)
Max. length of finished pack250 mm (9.8 in)
Max. film speed 120 m/min (395 ft/min)
Max. cycles 12/min
Contact us for all product solutions

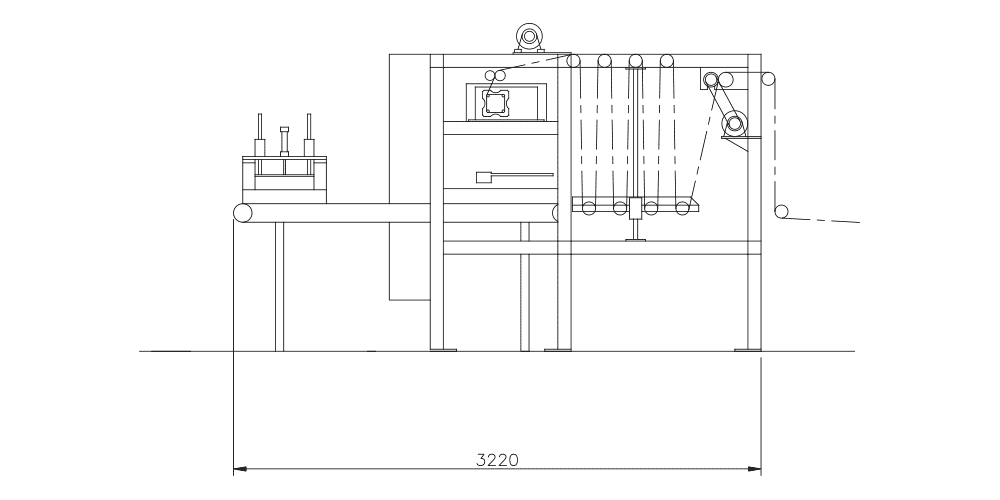

Technical Drawing
Product sheet – Download here Download File

Watch the video about FW Flat Sheet Winder
