Delta T Plus

The Delta 900 T Plus was designed for customers that need an even higher production capacity than that of a standard Delta 900 T – the capacity increase is higher than 16%. With the Delta 900 T Plus it is possible to produce up to 700 bags per minute, with total sealing thickness up to 90μ. You can run with reduced speed with a total thickness up to 400 μ.

Do you need an expert?

Find your Roll-o-Matic representative in your country

See video

Performance

Max. speed 160 m/min (530 ft/min)

Max. cycles 350/min (700 bags/min)

Max. sealing width 900 mm (35.4 in)

Min. bag length 350 mm (13.8 in)

Max. bag length 10 m

Film thickness from 5 μm

Types of bags for this solution
T-shirt
Technical Data

Delta T Plus
Min. film thickness5 μm
Max. total sealing thickness400 μm
Max. speed160 m/min
530 ft/min
Max cycles 350/min/lane
Min. bag length 350 mm
13.8 in
Max. bag length 10,000 mm
393.7 in
Max. sealing width 900 mm
35.4 in
Number of lanes Up to 2
Contact us for all product solutions

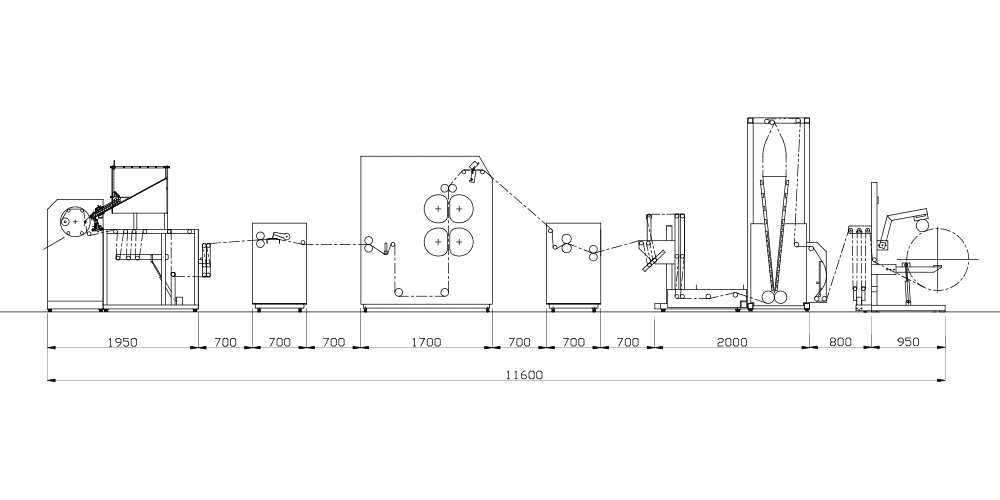

Technical Drawing
Product sheet – Download here Download File

Watch the video about Delta T Plus
