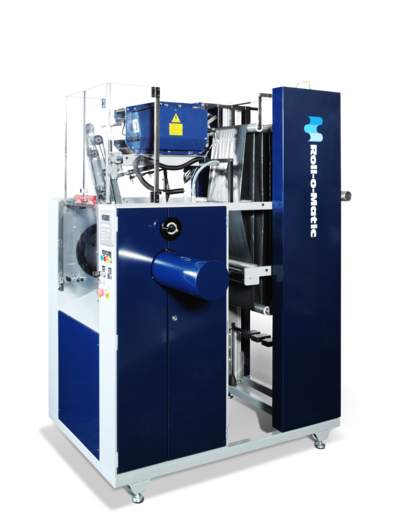

W 500 Winder

The W 500 is a fully automatic single-lane winder for coreless winding of bags and film. It can be integrated into a Roll-o-Matic bag-making line or installed as a stand-alone module, making it a flexible solution for both new and existing production setups.

The W 500 can run in-line with an extruder or out-of-line with an unwinder. It is particularly well suited for in-line production, where the extruder typically determines the speed of the complete line.

Small-diameter winding pins ensure tight, uniform rolls. Finished rolls can be closed with paper tape or hot melt, depending on your production requirements.

Do you need an expert?

Find your Roll-o-Matic representative in your country

See video

Performance

Max. film speed: 120 m/min (395 ft/min)

Max. roll changes/lane: 10/min

Technical Data

W 500/10W 500/8
Min. winding width120 mm (4.7 in)120 mm (4.7 in)
Max. winding width500 mm (19.7 in)500 mm (19.7 in)
Max. film speed120 m/min (395 ft/min)80 m/min (260 ft/min)
Max. roll diameter200 mm (7.9 in)200 mm (7.9 in)
Max. roll changes10/min8/min
Contact us for all product solutions

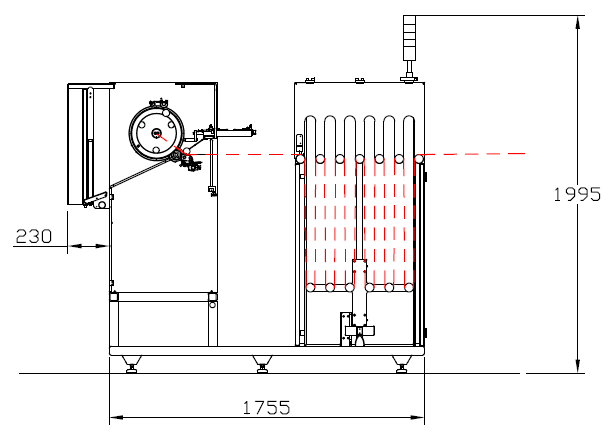

Technical Drawing
Product sheet – Download here Download File

Watch the video about W 500 Winder

See all videos
