HMW 1250 High-speed Multilane Winder

The HMW is a fully automatic high-speed winder for bags, industrial film, nonwoven and similar webs. It can run in a single lane or in multiple lanes, making it suitable for applications ranging from fruit bags to large industrial bags and film.

The HMW 1250 has a maximum winding width of 1250 mm and can run in up to 6 lanes, with a maximum film speed of 220 m/min. Its automatic core loading system supports efficient production and ease of operation.

A specially designed splicing system provides an accurate, wrinkle-free roll start on cores from 30 to 76 mm, without the need for glue.

The HMW can be combined with different Roll-o-Matic bag-making and film-processing solutions to match the application and production requirements.

Do you need an expert?

Find your Roll-o-Matic representative in your country

See video

Performance

Max. film speed: 220 m/min (720 ft/min)

Max. roll changes/lane: 3/min

Products for this solution

Bottom sealed bags

Industrial film

Industrial film, folded

Technical Data

	HMW 1250
Film thickness	From 5 μm
Min. winding width	400 mm 15.7 in
Max. winding width	1250 mm 49.2 in
Max. film speed	220 m/min 720 ft/min
Max. roll changes	3/min/lane
Max. roll diameter	310 mm 12.2 in
Cores	Only with cores
Core width	From 125 mm (4.9 in) To 1250 mm (49.2 in)
Core inner diameter	From 30 mm (1.2 in) To 76 mm (3 in)
Number of lanes	1 to 6

Contact us for all product solutions

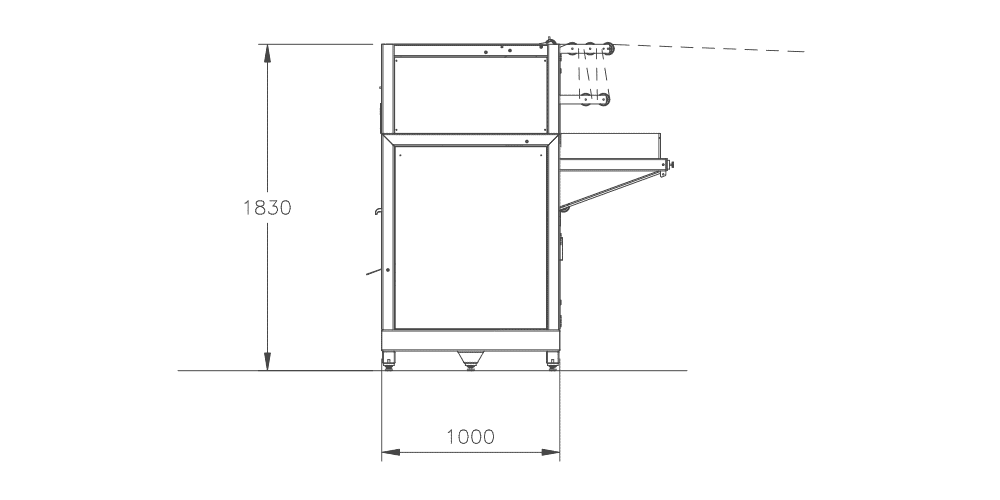

Technical Drawing

Product sheet – Download here Download File

Watch the video about HMW 1250 High-speed Multilane Winder

See all videos
