Delta S Standard bags

The Delta S is a high-speed bag-making line for standard bags on roll that do not require shape cutting. It can produce bottom-sealed, gusseted, star-sealed and side-sealed bags in 1, 2 or more lanes.

The line can be configured with standard Delta or Delta max™ sealing sections depending on the bag size, film thickness and production requirements. Delta max™ provides longer sealing time, making it particularly suitable for heavy-gauge and multilayer films where sealing can limit production speed.

The Delta S can process a wide range of PE films, including LDPE, LLDPE, MDPE and HDPE, as well as recycled, bio-based and multilayer films. Typical applications include garbage bags, dog waste bags, freezer bags and other types of standard bags on roll.

Bags can be produced perforated or interleaved, and the line can run in-line with an extruder or out-of-line with an unwinder. Additional Delta modules can be integrated when production requirements change, providing flexibility to adapt the line to other bag types.

Do you need an expert?

Find your Roll-o-Matic representative in your country

See video

Performance

Max. speed 180 m/min (600 ft/min)

Max. cycles 600/min (1800 bags/min)

Max. sealing width 1250 mm (49.2 in)

Min. bag length 250 mm (9.8 in)

Max. bag length 10 m

Film thickness from 5 μm

Types of bags for this solution

Bottom sealed

Star-sealed

Gusseted

Side-sealed

Bottom sealed, interleaved

Star-sealed, interleaved

Gusseted, interleaved

Side-sealed, interleaved

Technical Data

	Delta 900 S	Delta max 900 S	Delta 1100 S & Delta 1250 S	Delta max 1100 S & Delta max 1250 S
Min. film thickness	5 μm	5 μm	5 μm	5 μm
Max. total sealing thickness	400 μm	400 μm	400 μm	400 μm
Max. speed	180 m/min 600 ft/min	180 m/min 600 ft/min	180 m/min 600 ft/min	160 m/min 530 ft/min
Max cycles	600/min/lane	550/min/lane	530/min/lane	490/min/lane
Min. bag length	205 mm 9.8 in	300 mm 12.8 in	250 mm 9.8 in	325 mm 12.8 in
Max. bag length	10,000 mm 393.7 in	10,000 mm 393.7 in	10,000 mm 393.7 in	10,000 mm 393.7 in
Max. sealing width	900 mm 35.4 in	900 mm 35.4 in	1100 mm (43.3 in) or 1250 mm (49.2 in)	1100 mm (43.3 in) or 1250 mm (49.2 in)
Max. bag width 2 lanes	2x 440 mm 2x 17.3 in	2x 440 mm 2x 17.3 in	2x 540 mm (21.2 in) or 2x 610 mm (24 in)	2x 540 mm (21.2 in) or 2x 610 mm (24 in)
Number of lanes	Up to 2	Up to 2	Up to 6	Up to 6

Contact us for all product solutions

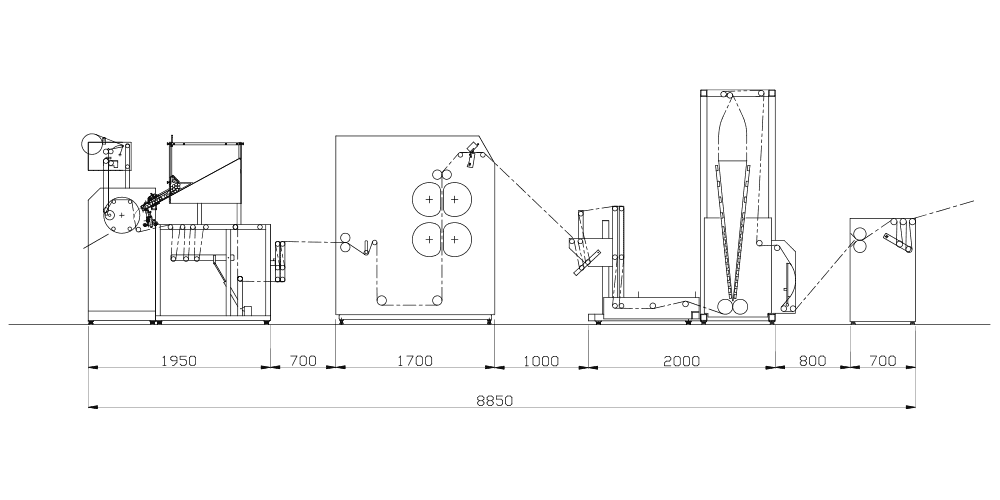

Technical Drawing

Product sheet – Download here Download File
