Delta max™ Garbage sacks

The Delta max™ is a high-speed bag-making line designed for production of large garbage bags and sacks on roll with heavy-gauge film. The longer sealing time of the Delta max™ makes it particularly suitable for thick films where sealing can limit production speed.

Depending on the film thickness and bag dimensions, the line can produce up to 1 metric ton of garbage bags per hour in 1 lane.

Garbage sacks are typically folded before winding to reduce the width of the finished roll. Different winding solutions can be configured depending on the required roll size and number of bags per roll.

The Delta max™ can run in-line with an extruder or out-of-line with an unwinder and process different PE films, including recycled and bio-based films.

Do you need an expert?

Find your Roll-o-Matic representative in your country

See video

Performance

Max. sealing width 900 mm (35.4 in)

Min. bag length 650 mm (25.6 in)

Max. speed 200 m/min (650 ft/min)

Max. cycles 250 bags/min

Types of bags for this solution
Garbage sacks, folded
Technical Data

Delta max
Max. total sealing thickness400 μm
Max. speed200 m/min
650 ft/min
Max cycles 250/min/lane
Min. bag length 650 mm
25.6 in
Max. sealing width 900 mm
35.4 in
Max. roll changes28/min with tape
32/min without tape
Contact us for all product solutions

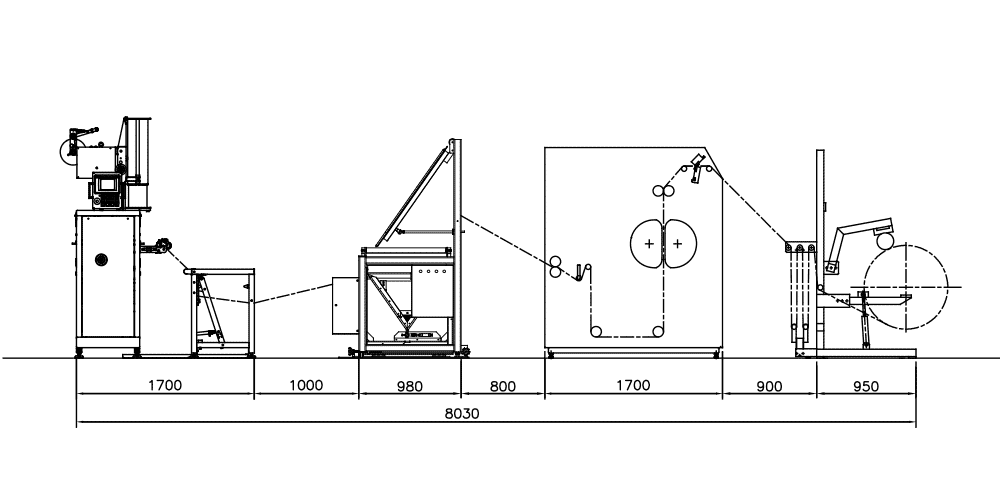

Technical Drawing
Product sheet – Download here Download File

Watch the video about Delta max™ Garbage sacks

See all videos
