Delta max™ 1250 Industrial bags

The impressive sealing capacity of Roll-o-Matic’s Delta max is now available in 1250 mm width.

The Delta max combines the 3 key sealing parameters – temperature, pressure and time – in an optimal way, allowing production with heavy gauge film or multi-layer film without compromising performance. For example, production speeds of up to 170 m/min with 200-micron film are achievable.



Do you need an expert?

Find your Roll-o-Matic representative in your country

See video

Performance

Max. speed 180 m/min (600 ft/min)

Max. cycles 550/min

Max. sealing width 1250 mm (49.2 in)

Min. bag length 325 mm (12.8 in)

Max. bag length 10 m

Film thickness from 5 μm

Types of bags for this solution
Bottom sealed
Star-sealed
Gusseted
Side-sealed
Technical Data

Delta max 1250
Min. film thickness5 μm
Max. total sealing thickness 400 μm
Max. speed180 m/min
600 ft/min
Max cycles 550/min/lane
Min. bag length 325 mm
12.8 in
Max. bag length 10,000 mm
393.7 in
Max. sealing width 1250 mm
49.2 in
Max. bag width 2 lanes 2x 610 mm
2x 24 in
Number of lanes Up to 6
Contact us for all product solutions

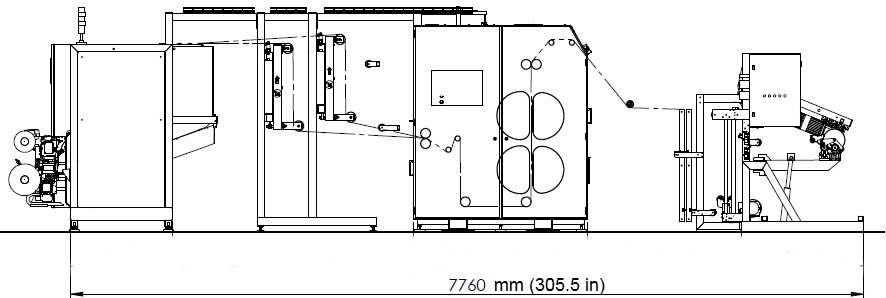

Technical Drawing
Product sheet – Download here Download File

Watch the video about Delta max™ 1250 Industrial bags
